Advanced MMA Inverter Technology for Manual Metal Fusion.
Delivering consistent arc stability and high-strength joining for Carbon Steel, Stainless Steel, and Cast Iron. Engineered for industrial-grade precision and reliability.
Facilitates the striking of the electric arc by supplying an overcurrent every time welding restarts.
Prevents the arc from extinguishing by easing the transfer of melted material from electrode to base metal.
Automatically switches off the power source if the electrode sticks, protecting both the machine and the material.
Industrial MMA Inverter Series
FORCE 145 230V code 815852 MMA inverter, electrode welding machine in direct current (DC). Use with a wide range of electrodes:rutile, basic, stainless steel, cast iron, etc. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

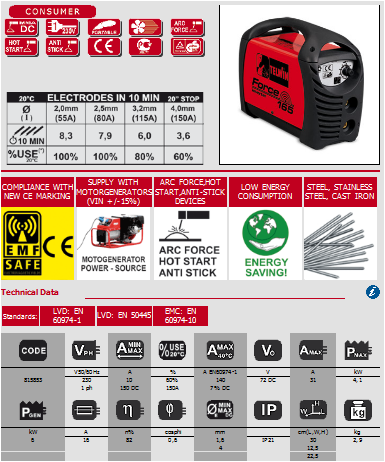

FORCE 165 230V code 815853 MMA inverter, electrode welding machine in direct current (DC). Use with a wide range of electrodes:rutile, basic, stainless steel, cast iron, etc. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

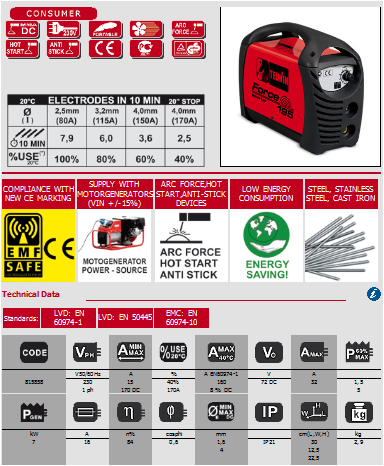

FORCE 195 230V code 815858 MMA inverter, electrode welding machine in direct current (DC). Use with a wide range of electrodes:rutile, basic, stainless steel, cast iron, etc. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

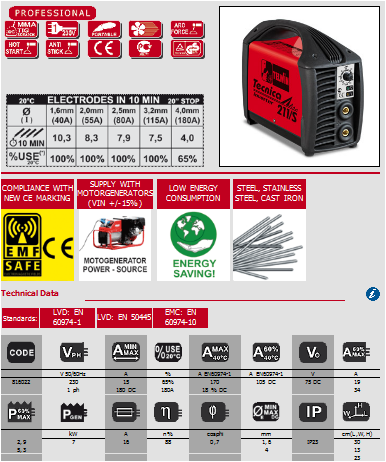

TECNICA 211/S 230V code 816022 MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

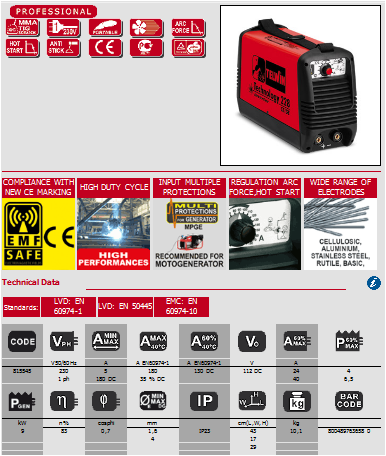

TECHNOLOGY 228 CE/GE 230V code 815545 MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel and cast iron electrodes with diameter up to 4 mm. It can be connected to motorgenerators. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent protections * multiprotections for motorgenerators.
SUPERIOR 245 400V code 816020 MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * arc force, hot start and anti-stick devices * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

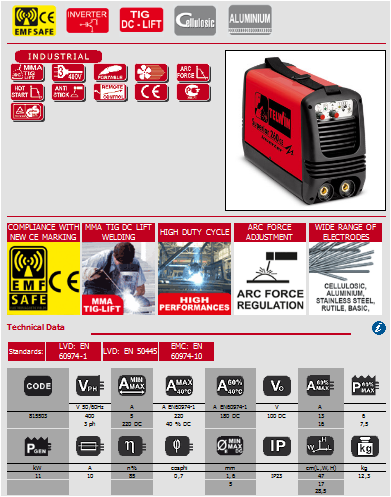

SUPERIOR 260 CE 400V code 815503 MMA and TIG-LIFT inverter, electrode welding machine in direct current (DC), designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel, cast iron with diameter up to 5 mm. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * immediate control of the welding droplets transfer * regulation of arc force and hot start according to the type of electrode in use * anti-stick device * remote control connector * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

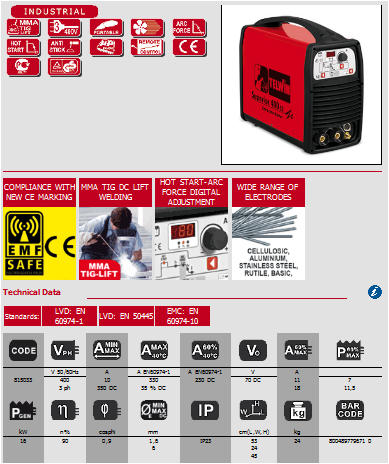

SUPERIOR 400 CE 400V code 815033 MMA and TIG-LIFT inverter welding machine in direct current (DC), with microprocessor control, designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel, cast iron with diameter up to 6 mm. Characteristics: compact and light * high welding current stability in spite of mains voltage fluctuations * immediate control of the welding droplets transfer * regulation of arc force and hot start according to the type of electrode in use * current down slope and post gas regulation * anti-stick device * storage on on-board E2PROM of thelast 9 alarms * remote control connector * thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Technical Selection Guide
| Material Type | Recommended Electrode | Current/Polarity | Key Characteristics |
|---|---|---|---|
| Mild/Low Carbon Steel | Rutile (R / RC) | AC / DC (-) | Easy arc strike, smooth seam appearance, ideal for general fabrication. |
| Medium/High Carbon Steel | Basic (B / RB) | DC (+) | Superior mechanical strength, deep penetration, prevents structural cracks. |
| Steel Pipes / Critical | Cellulose (C) | DC (+) | High gasification, deep penetration, perfect for vertical-down welding. |
| Stainless Steel | Specialized (Cr-Ni) | DC (+) | High corrosion resistance, tailored for specific metallurgical grades. |
| Aluminium & Alloys | Specialized (Mg-Si) | DC (+) | Requires high strike dynamic machines for clean, oxide-free fusion. |
| Cast Iron | Specialized Nickel/Iron | DC (+) | Used for structural repairs; requires controlled pre-heating before use. |
